Developer's Guide

This chapter outlines the functionality of the internal, decorator-based DSL for component definitions and the infrastructure behind it.

Abstract Description

The structure of the workbench can abstractly be seen as a component and connector architecture. Developers will mainly interact with components (that compute something) and types (as in the input/output type definitions accepted by components).

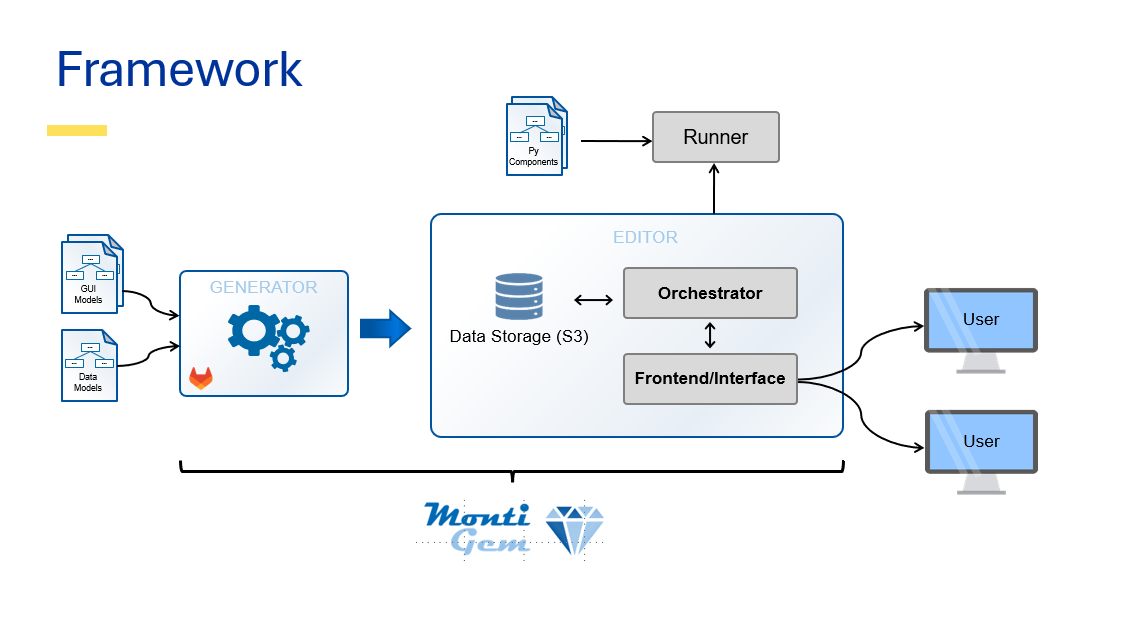

Architecture of the Visual Editor

At runtime the user interacts with the frontend/interface, which communicates with the orchestrator/backend.

The components itself are provided by runners which register the available type definitions and component definitions. The WBGeo-domain-specific MontiGem protocol is used for communication between the runners and the orchestrator. Internally, the MontiGem protocol is built upon WebSockets.

The interface, parts of the orchestrator, and the python domain classes are generated using the MontiGem framework from a set of input data and gui models.

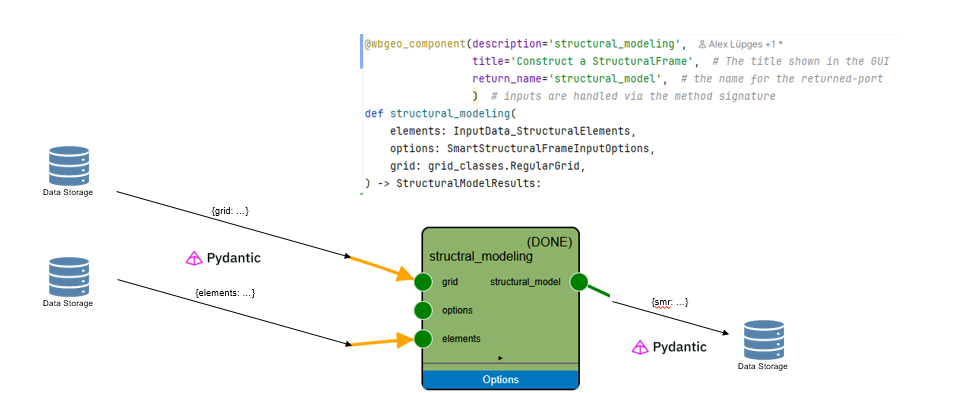

Data Flow

This section holds true for execution in the context of the visual editor. When running an example locally (e.g. as a .py file/jupyter notebook) the following steps do not occur (see below).

Each component is executed in a runner.

Before a component is executed:

  1. the runner loads the data of all inputs from a data storage
  2. then deserializes them to objects
  3. For WBGeo, pydantic is used to convert the data's JSON representation to python objects.
  4. Then the component is executed
  5. stdout, stderr, and errors are captures
  6. Finally, the result of the computation is serialized (using pydantic to JSON) and stored in the data storage.
  7. Additionally, a hash of the computation is stored among the hashes of all inputs.

Simulated Data Flow in Python Notebooks

When writing example workflows, the (de)serialization step is omitted. To simulate it, you can add the following lines before importing any other files.

# Simulate the nodesapi at runtime to also check that (de)serialization is set up correctly
from examples.pydantic_nodesapi_simulation import register_as_test_nodes_api

register_as_test_nodes_api()
# ... rest of your program below


Installation

Step 1: Git Clone

Checkout the codebase via git:

git clone git@github.com:wbgeo/codebase.git

Step 2: Install Requirements

Install the requirements

pip install -r requirements.txt

On Windows, the sfepy package (used for process simulation) needs a C compiler to build during install. If you don't plan to run simulations and don't want to install a compiler, remove the sfepy line from requirements.txt before running the command above.

Step 3: Done

And you are done. You can test out the examples to ensure your setup is working, e.g.:

python examples/synthetic_examples/model1/WBGeo1.0_model1.py
